RPM Kawasaki H2 STAGE 3 XL Intercooler, Dual Brushless Fans, & Sealed Shroud Kit
The pinnacle of charge air cooling for the supercharged Kawasaki Teryx H2! The factory intercooler is no match for serious dune bashing, summer desert heat, or high-boost tunes. When Intake Air Temperatures (IAT) spike under heavy load, the factory ECU aggressively pulls power and timing to protect the engine—robbing you of performance right when you need it most.
Our Stage 3 XL Intercooler Kit is engineered specifically for heavily tuned, high-boost, or aggressively driven H2s. At the heart of this system is a massive aluminum bar-and-plate core measuring 16" Wide x 11" Tall x 4" Thick—delivering 33% more surface area and a staggering 113% increase in core volume over the factory intercooler. This massive core virtually eliminates heat soak, pulling extreme thermal energy out of the compressed charge air so your H2 delivers consistent, peak horsepower pull after pull.
To cool this massive core, the Stage 3 XL features dual high-flow 8-inch, 10-blade brushless fans mounted to a custom aluminum shroud lined with EPDM foam seals. Unlike the leaky factory shroud that allows hot air to bypass the core, this airtight shroud forces 100% of the fans' massive airflow through the intercooler core. Discharge air is then blown across the top of the engine block to help lower overall engine operating temperatures.
Despite its massive cooling capacity, the Stage 3 XL mounts in the stock location utilizing factory mounting points and hardware—and even reuses the original red factory intercooler cover for an aggressive OEM-plus engine bay look!
XL Intercooler Core Dimensions: 16" W x 11" H x 4" D (406mm W x 279mm H x 102mm D)
Surface Area & Volume Gains: +33% Surface Area & +113% Core Volume over stock factory intercooler
Dual Fan Assembly: Dual 8-Inch, 10-Blade High-Performance Brushless Fans
Startup Profile: Built-in Soft-Ramp Power Supply (Eliminates harsh electrical voltage spikes on startup)
Shroud Assembly: Precision Aluminum Shroud with EPDM Foam Air-Sealing Strips
Silicon Charge Hoses: Includes heavy-duty, high-flow silicone charge tubes (Select color option at checkout)
⚠️ INSTALLATION & MODIFICATION NOTE:
Shroud Trimming: Requires minor trimming of the factory plastic intercooler trim shroud to clear the enlarged XL core.
Maximum Charge Air Temperature Drops: Delivers the lowest and most stable Intake Air Temperatures (IAT) possible under continuous high-boost and high-ambient heat conditions.
+113% Core Volume Increase: Massive 4" thick bar-and-plate core completely eradicates thermal heat soak during extended wide-open throttle runs.
Dual Brushless Fan Power: Dual 8" high-flow brushless fans move twice the airflow volume of the single stock 9" brushed fan while remaining highly electrically efficient.
100% Sealed Airflow Channeling: EPDM foam-sealed aluminum shroud stops bypass air leaks and forces 100% of fan velocity through the XL core.
Engine Bay Heat Dissipation: Channels a massive volume of discharge airflow directly across the top of the engine valve cover to lower overall powerplant temperatures.
Includes Upgraded Silicone Charge Hoses: Ships complete with custom high-flow silicone charge tubes in your choice of color.
Factory Cover Integration: Stealthy installation that retains the iconic factory red engine cover.
Stage 1: High-Flow 10" Brushless Fan & Custom EPDM Sealed Shroud Assembly (Foundation Upgrade)
Stage 2: 62% Larger Big Core Intercooler + 10" Brushless Fan + Sealed Shroud Assembly (Ideal for Moderate Builds)
Stage 3 XL (This Kit): Ultimate Charge Air Cooling Solution with 113% Larger Core + Dual 8" Brushless Fans + Upgraded Silicone Charge Tubes (Built for Aggressive Riding & High Boost)
(1) RPM SXS 16" x 11" x 4" Bar & Plate Aluminum XL Big Core Intercooler
(2) RPM SXS 8" High-Output 10-Blade Brushless Fans
(1) RPM SXS Precision Aluminum Dual-Fan Intercooler Shroud
(1) Premium Pre-Cut EPDM Foam Air-Sealing Strip Pack
(1) High-Flow Silicone Charge Tube Kit (Choice of Color)
(1) Plug-and-Play Dual-Fan Wiring Adapter Harness
(1) Complete Set of Stainless Steel Mounting Hardware & Wire Clamps
Fits all seating configurations and trims across the Kawasaki Teryx H2 platform:
Kawasaki Teryx H2 4 (4-Passenger Models): 2024–2026
Kawasaki Teryx H2 5 (5-Passenger Models): 2024–2026
All orders typically ship within 2-4 business days of order being placed. Weekends, holidays, and weather may slow fulfillment down on order processing. Unless otherwise noted, backordered items will ship according to their estimated shipping times.
Overall rating: 5.0 / 5 from 3 reviews.

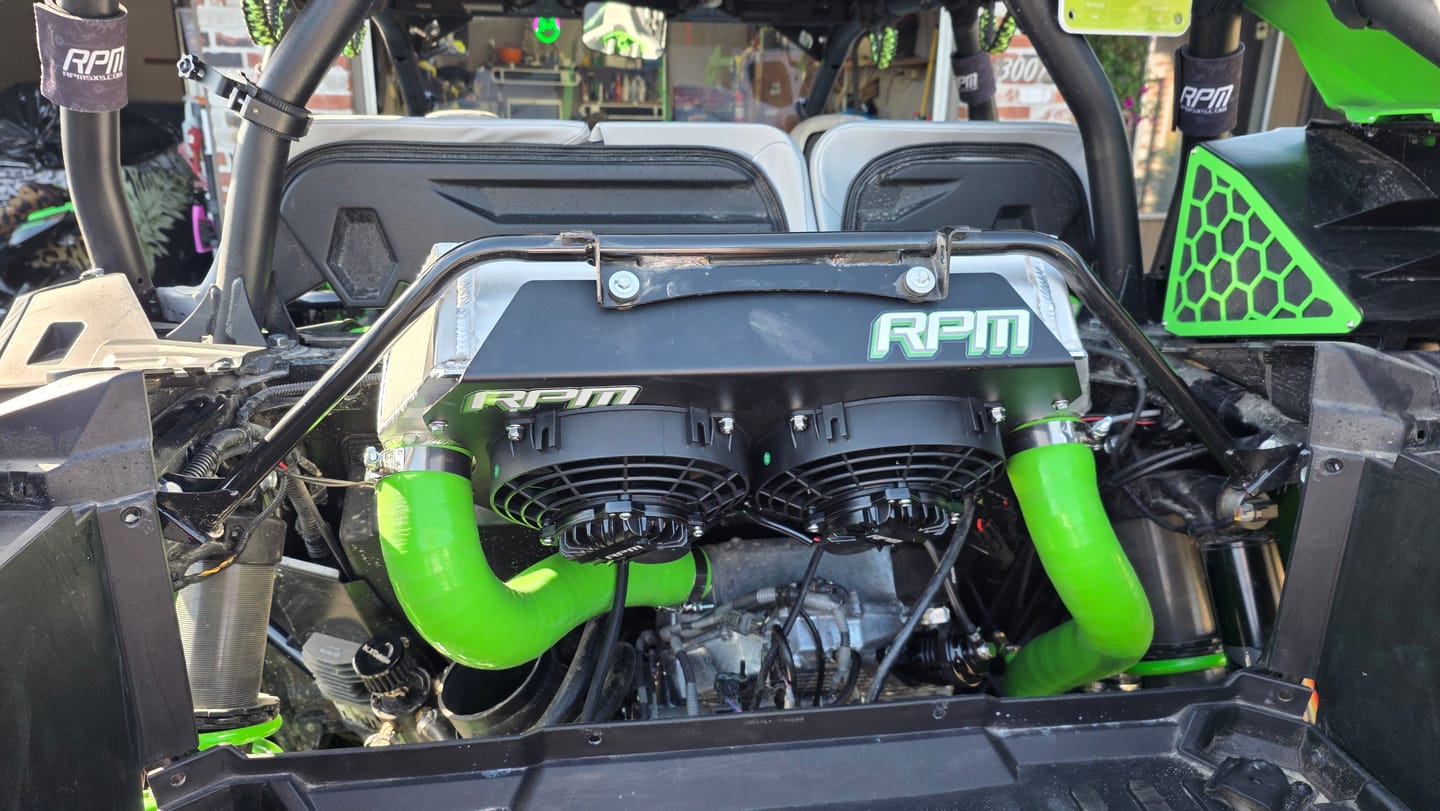

If you're wanting to make some more horsepower and more torque. This is a must-have upgrade. Engine heat and boost temperatures are what kills these motors on the H2. It robs you of horsepower. Adding the stage 3 XL intercooler allows for the most airflow and coolest boost temperatures possible. This is a must-have upgrade.
RPM Kawasaki H2 Stage 3 XL Intercooler With Brushless Fans & Sealed Shroud
PERFECT FIT. THX
RPM Kawasaki H2 Stage 3 XL Intercooler With Brushless Fans & Sealed Shroud
Love the oversized feature of this unit. Great product
RPM Kawasaki H2 Stage 3 XL Intercooler With Brushless Fans & Sealed Shroud
